Ordinary Rain Gauge
In Stock

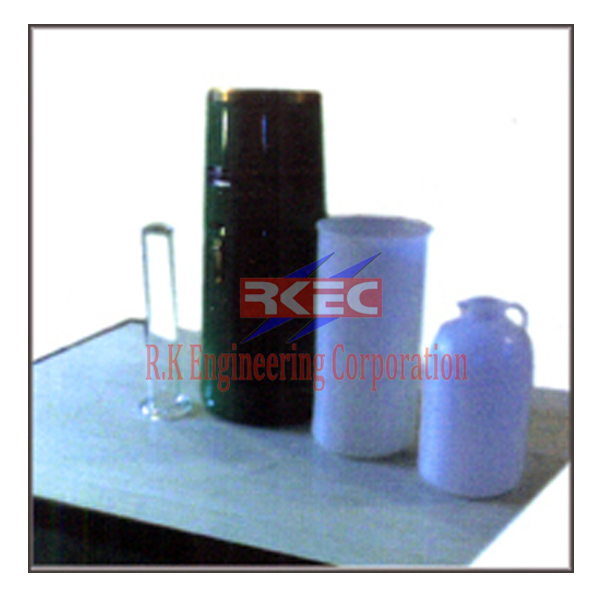

The ‘RKEC’ make Model [RK-ORG-1] Non recoding Rain Gauges are manufactured as per IS: 5225:1992. Rain Gauge is manufactured from non-corrosive fiber glass reinforced plastic container. It consists of collector assembled with brass Ring. Funnel, Locking Rings and Base. The Rain Gauge is supplied with 4-liter white plastic bottle and a glass measuring cylinder.
- Category : Manual Rain Gauge
- Model Number : RK-ORG-1
- Brand : RK Engineering Corporation
-
Ordinary Rain Gauge
The ‘RKEC’ make Model [RK-ORG-1] Non recoding Rain Gauges are manufactured as per IS: 5225:1992. Rain Gauge is manufactured from non-corrosive fiber glass reinforced plastic container. It consists of collector assembled with brass Ring. Funnel, Locking Rings and Base. The Rain Gauge is supplied with 4-liter White plastic bottle and a Glass measuring cylinder. Rain Gauges are available in 200cm² collection area. The essential parts of an ordinary rain gauge are a funnel through which the rain water is collected in a receiver and a measuring cylinder (rain measure) with which the rain water collected is measured. The correct type of rain measure suitable to the type of rain gauge in use has to be used for the measurement of rainfall. The rain measure is graduated for every 0.2 mm of rainfall. This instrument is also available with IMD Pune, certification (at extra cost). -
Resolution 0.20 mm Model Number RK-ORG-1 Rain Gauge Diameter 159.60 mm Capacity 200 mm of rainfall Standard As per IS 5225:1992 Collection Area 200 CM² Collector bottle Made of white plastic and container Jar 4-liter capacity Funnel Made of non-corrosive fiberglass having a Chamfered Edge Rim made of Gun Metal at the top of the funnel. Material Noncorrosive fiberglass body have smooth and permanent surface finish to mini evaporation losses -
Research in School and CollegesUrban and municipalitiesSynoptical and climatological stations
-
Standard ORG Supply with below two rows
RK-ORG-1 ORDINARY RAIN GAUGE WITH WHITE PLASTIC MEASURING CAN AND CONATINER RK-ORG-MJG GLASS 20 MM RAIN FALL CAPACITY resolution 0.20 mm BOX1 Dimension 24x24x57 cm³ Rain gauge with Container and Can RK-ORG-MJG0.1 GLASS 10 MM RAIN FALL CAPACITY Measuring Jar resolution 0.10 mm up to 1 mm and 0.20 mm rest of the 10 mm rain fall. (Supply on request at extra cost) Toal Weight 4.5 kg BOX2 Dimension 35x11x11 cm³ Glass Measuring Jar [RK-ORG-MJG]
